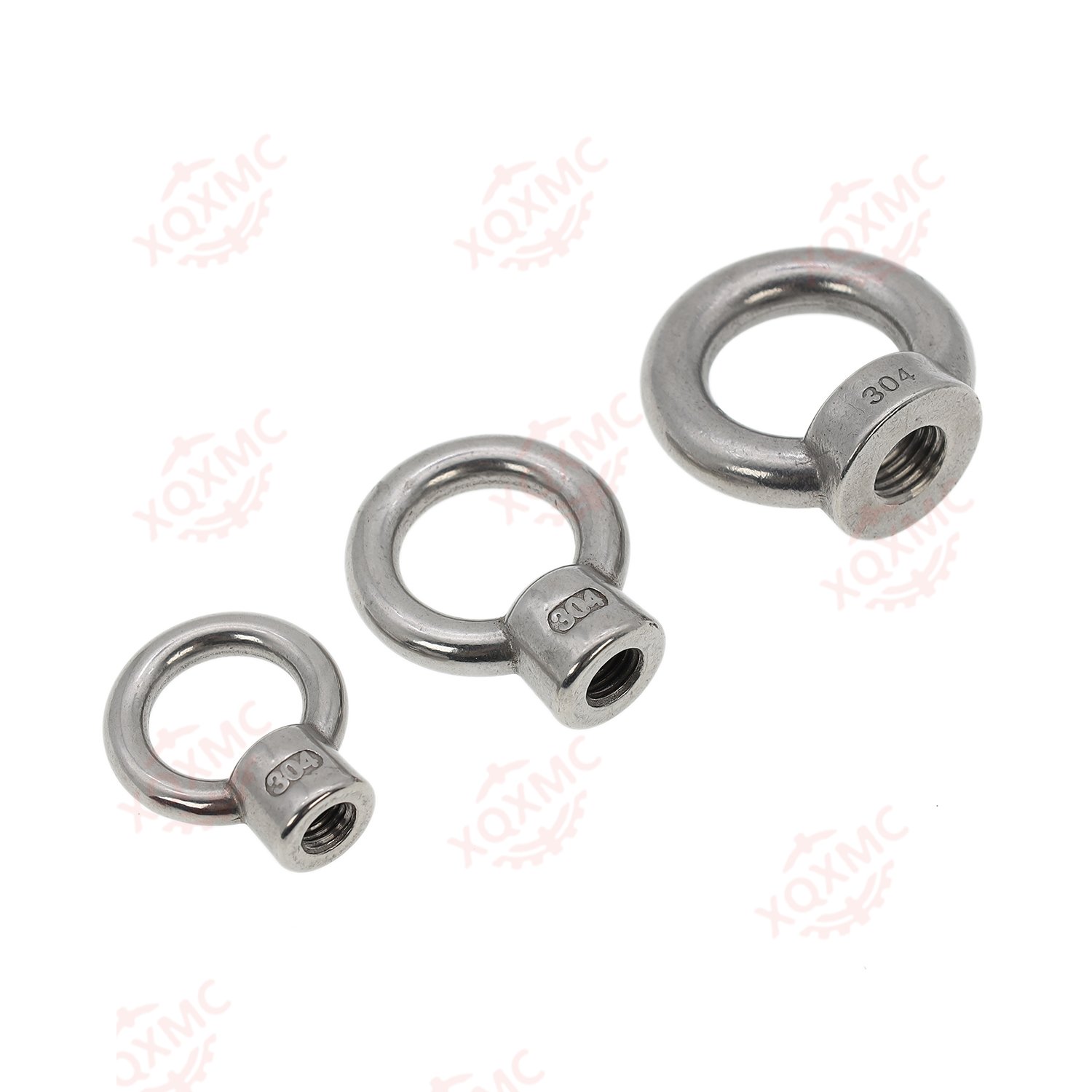

material:C15 carbon steel
Surface Treatment：Galvanized, hot dip galvanized, paint, chrome plating
Safety factor: six times
The lifting eyes shall be screwed tight against the surface. When two lifting eyes are used their mutual position shall result in the two eyes at the same level. Larger angle between the slings than 90° are not tolerated. Lifting eyes can not be assembled against a surface that differ essentially from a surface perpendicular to the direction of the lift.
| Size | WLL | WLL | DIMENSIONS | Weight | |||||
| d1 | d2 | d3 | e | h | k | ||||
| d | t | t | mm | mm | mm | mm | mm | mm | %kg |
| M 6 | - | 一 | 20 | 36 | 20 | 8.5 | 18 | 8 | 4.9 |
| M 8 | 0.14 | 0.095 | 20 | 36 | 20 | 8.5 | 18 | 8 | 5.0 |
| M 10 | 0.23 | 0.17 | 25 | 45 | 25 | 10 | 22 | 10 | 9.0 |
| M 12 | 0.34 | 0.24 | 30 | 54 | 30 | 11 | 26 | 12 | 16.0 |
| M 10 | 0.7 | 0.5 | 35 | 63 | 35 | 13 | 30 | 14 | 24.0 |
| M 20 | 1.2 | 0.83 | 40 | 72 | 40 | 16 | 35 | 16 | 36.0 |
| M 22 | 1.5 | 1.05 | 45 | 81 | 45 | 18 | 40 | 18 | 58.0 |
| M 24 | 1.8 | 1.27 | 50 | 90 | 50 | 20 | 45 | 20 | 72.0 |
| M 27 | 2.5 | 1.65 | 50 | 90 | 50 | 20 | 45 | 20 | 70.0 |
| M 30 | 3.6 | 2.6 | 65 | 108 | 60 | 25 | 55 | 24 | 132.0 |
| M 33 | 4.3 | 3.2 | 65 | 108 | 60 | 25 | 55 | 24 | 130.0 |
| M 36 | 5.1 | 3.7 | 75 | 126 | 70 | 30 | 65 | 28 | 208.0 |
| M 39 | 6.1 | 4.3 | 75 | 126 | 70 | 30 | 65 | 28 | 202.0 |
| M 42 | 7 | 5 | 85 | 144 | 80 | 35 | 75 | 32 | 311.0 |
| M 45 | 8 | 5.5 | 85 | 144 | 80 | 35 | 75 | 32 | 304.0 |
| M 48 | 8.6 | 6.1 | 100 | 166 | 90 | 40 | 85 | 38 | 502.0 |
| M 52 | 9.9 | 7.3 | 100 | 166 | 90 | 40 | 85 | 38 | 495.0 |
| M 56 | 11.5 | 8.3 | 110 | 184 | 100 | 45 | 95 | 42 | 669.0 |
| M 64 | 16 | 11 | 120 | 206 | 110 | 50 | 105 | 48 | 930.0 |
*)These sizes should be avoided,if possible.
Model:Drop forged,fused,sdlfcoloured
Material and Thread:C 15/DIN 11/DIN 267.
