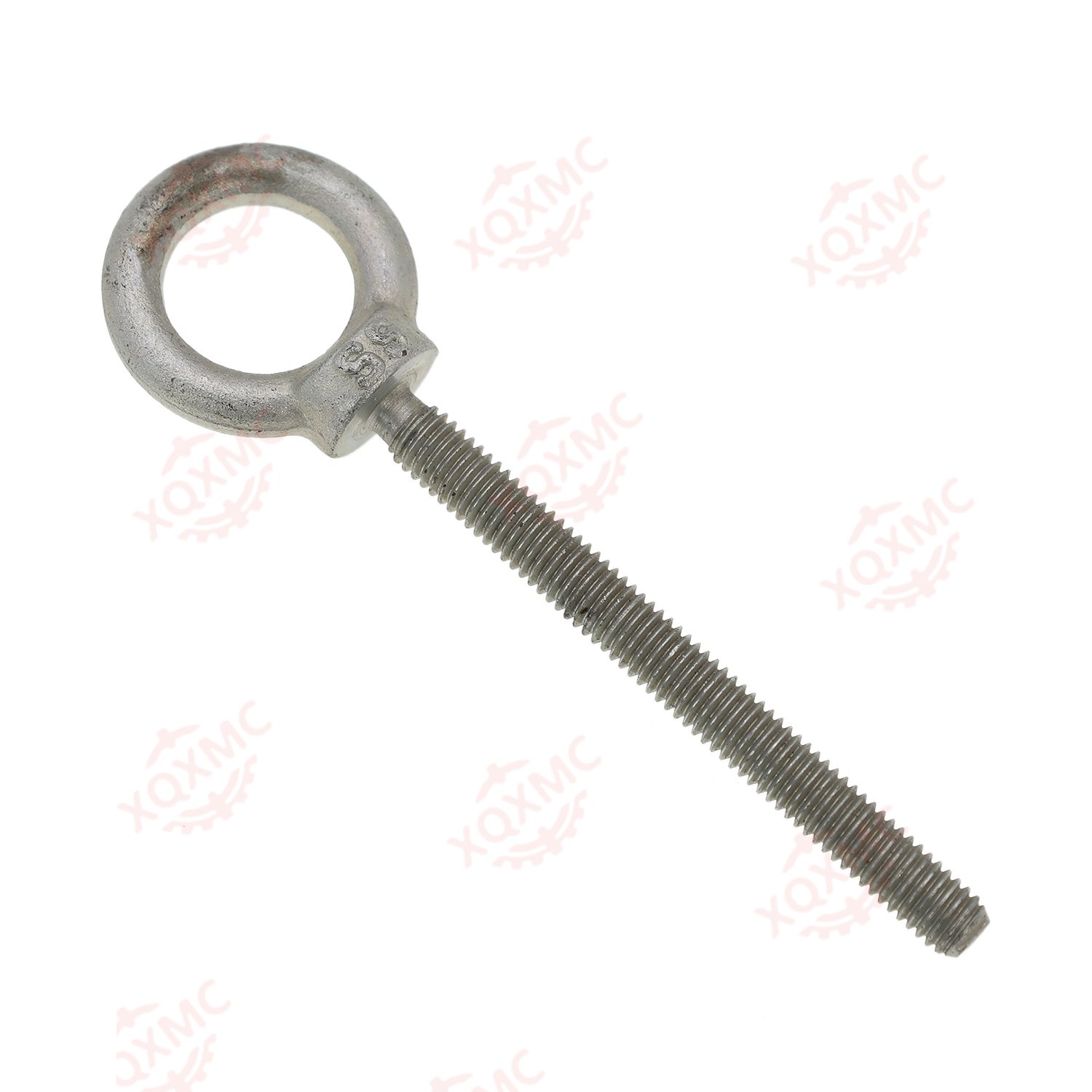

Material: Carbon steel
Surface Treatment: Galvanized hot dipped galvanized,zinc plated
Size: 11/4*2---11/4*20
Usage: Wire rope fittings, marine hardware fittings
Packing: by customer requirments
Special specifications and marks can be made according to customers requirements Specification
| Shank | Working | Weight | Dimensions (in) | |||
| Dia & | Load | Per | ||||
| Length | Limit | 100 | ||||
| (in) | (lbs) | (1bs) | A | B | C | D |
| 1/4x2 | 500 | 8.20 | 0.25 | 0.50 | 1.50 | 3.06 |
| 1/4x4 | 500 | 11.70 | 0.25 | 0.50 | 2.50 | 5.06 |
| 5/16x21/4 | 800 | 13.30 | 0.31 | 0.62 | 1.50 | 3.56 |
| 5/16x41/4 | 800 | 25.00 | 0.31 | 0.62 | 2.50 | 5.56 |
| 3/8x21/2 | 1200 | 23.30 | 0.38 | 0.75 | 1.50 | 4.12 |
| 3/8x41/2 | 1200 | 29.50 | 0.38 | 0.75 | 2.50 | 6.12 |
| 3/8x6 | 1200 | 35.20 | 0.38 | 0.75 | 2.50 | 7.62 |
| 1/2x31/4 | 2200 | 50.30 | 0.50 | 1.00 | 1.50 | 5.38 |
| 1/2x6 | 2200 | 66.10 | 0.50 | 1.00 | 3.00 | 8.12 |
| 1/2x8 | 2200 | 82.00 | 0.50 | 1.00 | 3.00 | 10.12 |
| 1/2x10 | 2200 | 88.00 | 0.50 | 1.00 | 3.00 | 12.12 |
| 1/2x12 | 2200 | 114.20 | 0.50 | 1.00 | 3.00 | 14.12 |
| 1/2x15 | 2200 | 116.85 | 0.50 | 1.00 | 4.00 | 17.12 |
| 5/8x4 | 3500 | 103.10 | 0.62 | 1.25 | 2.00 | 6.69 |
| 5/8x6 | 3500 | 118.20 | 0.62 | 1.25 | 3.00 | 8.69 |
| 5/8x8 | 3500 | 135.10 | 0.62 | 1.25 | 3.00 | 10.69 |
| 5/8x10 | 3500 | 153.60 | 0.62 | 1.25 | 3.00 | 12.69 |
| 5/8x12 | 3500 | 167.10 | 0.62 | 1.25 | 4.00 | 14.69 |
| 5/8x15 | 3500 | 201.16 | 0.62 | 1.25 | 5.00 | 17.69 |
| 5/8x24 | 3500 | 279.10 | 0.62 | 1.25 | 6.00 | 26.69 |
| 3/4x41/2 | 5200 | 168.60 | 0.75 | 1.50 | 2.00 | 7.69 |
| 3/4x6 | 5200 | 184.50 | 0.75 | 1.50 | 3.00 | 9.19 |
| 3/4x8 | 5200 | 207.90 | 0.75 | 1.50 | 3.00 | 11.19 |
| 3/4x10 | 5200 | 235.00 | 0.75 | 1.50 | 3.00 | 13.19 |
| 3/4x12 | 5200 | 257.50 | 0.75 | 1.50 | 4.00 | 15.19 |
| 3/4x15 | 5200 | 298.00 | 0.75 | 1.50 | 5.00 | 18.19 |
| 7/8x5 | 7200 | 270.00 | 0.88 | 1.75 | 2.50 | 8.75 |
| 7/8x8 | 7200 | 308.00 | 0.88 | 1.75 | 4.00 | 11.75 |
| 7/8x12 | 7200 | 400.00 | 0.88 | 1.75 | 4.00 | 15.75 |
| 1x6 | 10000 | 421.00 | 1.00 | 2.00 | 3.00 | 10.31 |
| 1x9 | 10000 | 468.50 | 1.00 | 2.00 | 4.00 | 13.31 |
| 1x12 | 10000 | 540.00 | 1.00 | 2.00 | 4.00 | 16.31 |
| 1x18 | 10000 | 650.00 | 1.00 | 2.00 | 7.00 | 22.31 |
| 11/4x8 | 15200 | 750.00 | 1.25 | 2.50 | 4.00 | 13.38 |
| 11/4x12 | 15200 | 900.00 | 1.25 | 2.50 | 4.00 | 17.38 |
| 11/4x20 | 15200 | 1210.00 | 1.25 | 2.50 | 6.00 | 25.38 |
*Ultimate load is 5 times working load limit
