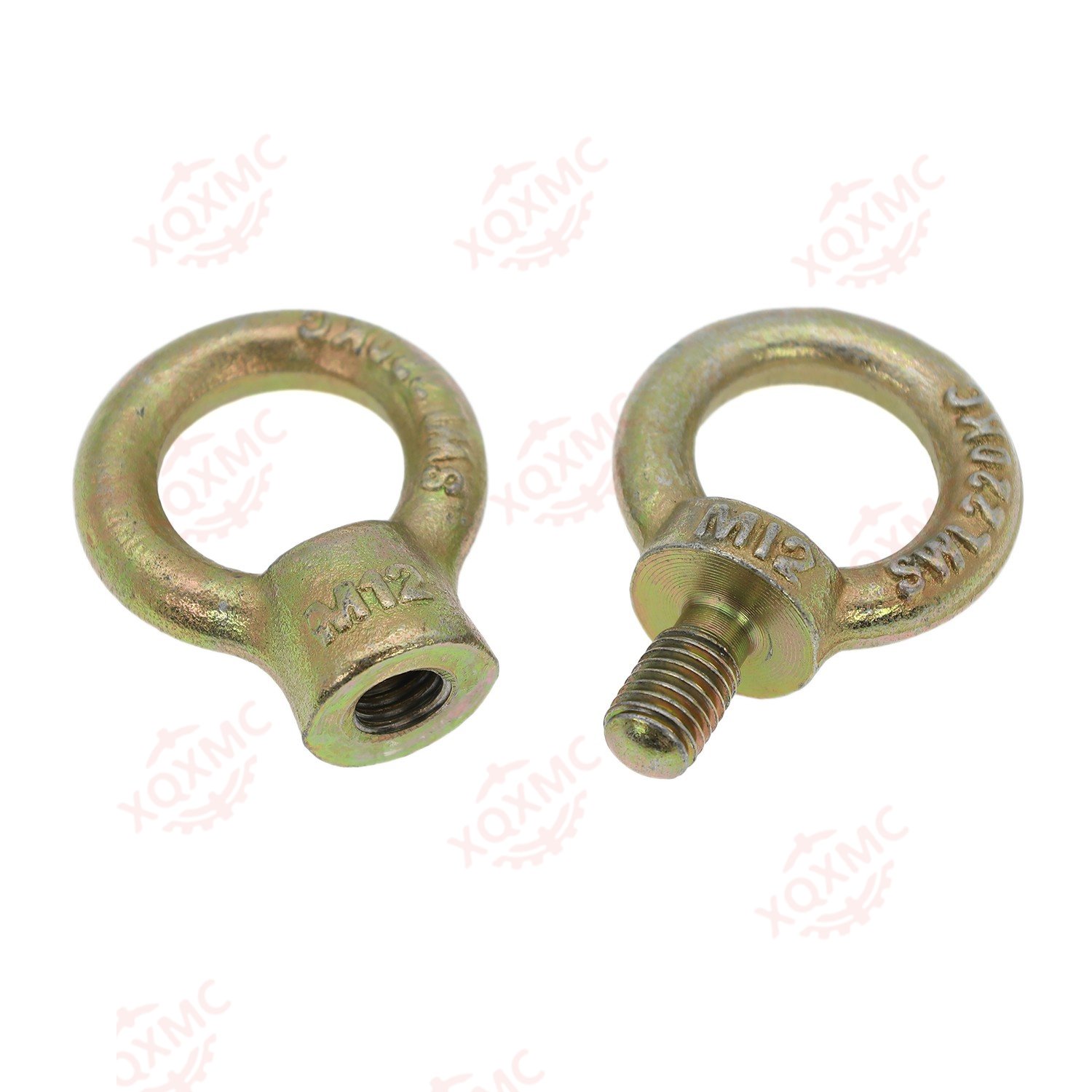

Material: Carbon Steel C15,C15E
Unit:mm
| Size(d) | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M64 | M80 |
| A | 32.6 | 41 | 50 | 60 | 72 | 90 | 110 | 133 | 151 | 170 | 210 | 266 |
| B | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 110 | 140 |
| C | 6.3 | 8 | 10 | 12.5 | 16 | 20 | 25 | 31.5 | 35.5 | 40 | 50 | 63 |
| D | 16 | 20 | 25 | 30 | 35 | 45 | 60 | 70 | 80 | 90 | 110 | 130 |
| E | 12 | 15 | 19 | 23 | 28 | 38 | 46 | 55 | 64 | 73 | 90 | 108 |
| F | 23 | 28 | 36 | 42 | 50 | 66 | 80 | 95 | 109 | 123 | 151 | 184 |
| G | 39.3 | 48.5 | 61 | 72 | 86 | 111 | 135 | 161.5 | 184.5 | 208 | 256 | 317 |
