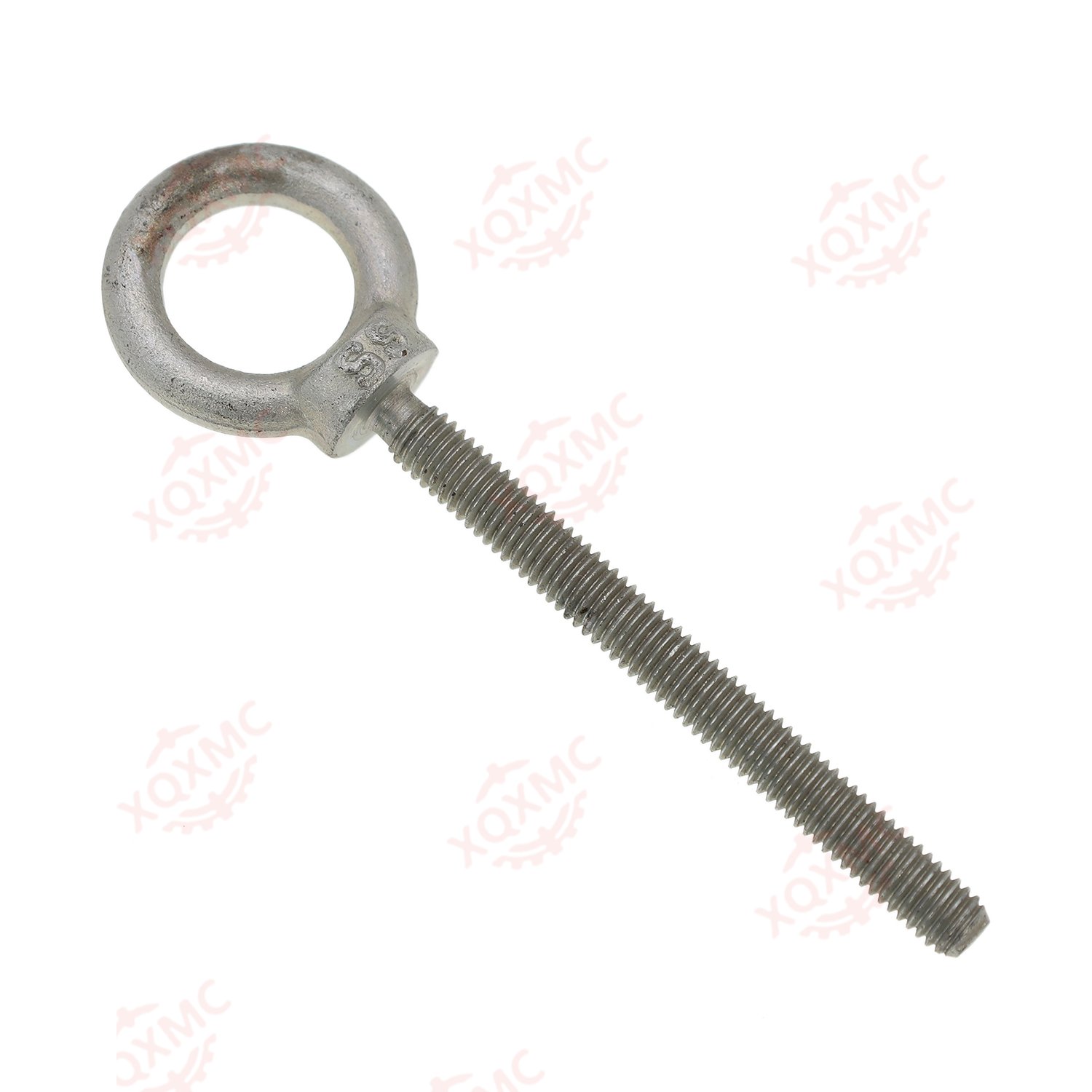

Material: c15
Process: Drop forged and heat-treated
Surface: galvanized, hot dip galvanized
| Shank | Working | Working | Dimensions | |||||||
| Dia.& | Load | Per | (in.) | |||||||
| Length | Limit | 100 | ||||||||
| (in.) | (1bs.) | (1bs.) | A | B | C | D | E | F | G | H |
| 1/4x2 | 500 | 6.00 | 0.25 | 0.50 | 1.00 | 0.25 | 1.50 | 2.00 | 3.06 | 0.56 |
| 1/4x4 | 500 | 13.50 | 0.25 | 0.50 | 1.00 | 0.25 | 2.50 | 4.00 | 5.06 | 0.56 |
| 5/16x21/4 | 800 | 18.75 | 0.31 | 0.62 | 1.25 | 0.31 | 1.50 | 2.25 | 3.56 | 0.69 |
| 5/16x41/4 | 800 | 25.00 | 0.31 | 0.62 | 1.25 | 0.31 | 2.50 | 4.25 | 5.56 | 0.69 |
| 3/8X21/2 | 1200 | 24.33 | 0.38 | 0.75 | 1.50 | 0.38 | 1.50 | 2.50 | 4.12 | 0.88 |
| 3/8X41/2 | 1200 | 37.50 | 0.38 | 0.75 | 1.50 | 0.38 | 2.50 | 4.50 | 6.12 | 0.88 |
| 3/8x6 | 1200 | 43.75 | 0.38 | 0.75 | 1.50 | 0.38 | 2.50 | 6.00 | 7.62 | 0.88 |
| 1/2x31/4 | 2200 | 50.00 | 0.50 | 1.00 | 2.00 | 0.50 | 1.50 | 3.25 | 5.38 | 1.12 |
| 1/2x6 | 2200 | 62.50 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 6.00 | 8.12 | 1.12 |
| 1/2x8 | 2200 | 75.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 8.00 | 10.12 | 1.12 |
| 1/2x10 | 2200 | 88.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 10.00 | 12.12 | 1.12 |
| 1/2x12 | 2200 | 100.00 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 12.00 | 14.12 | 1.12 |
| 5/8X4 | 3500 | 101.25 | 0.62 | 1.25 | 2.50 | 0.62 | 2.00 | 4.00 | 6.69 | 1.44 |
| 5/8X6 | 3500 | 120.00 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 6.00 | 8.69 | 1.44 |
| 5/8X8 | 3500 | 131.00 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 8.00 | 10.69 | 1.44 |
| 5/8x10 | 3500 | 162.50 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 10.00 | 12.69 | 1.44 |
| 5/8X12 | 3500 | 175.00 | 0.62 | 1.25 | 2.50 | 0.62 | 4.00 | 12.00 | 14.69 | 1.44 |
| 3/4X41/2 | 5200 | 185.90 | 0.75 | 1.50 | 3.00 | 0.75 | 2.00 | 4.50 | 7.69 | 1.69 |
| 3/4x6 | 5200 | 180.00 | 0.75 | 15.00 | 3.00 | 0.75 | 3.00 | 6.00 | 9.19 | 1.69 |
| 3/4x8 | 5200 | 200.00 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 8.00 | 11.19 | 1.69 |
| 3/4x10 | 5200 | 237.50 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 10.00 | 13.19 | 1.69 |
| 3/4x12 | 5200 | 251.94 | 0.75 | 1.50 | 3.00 | 0.75 | 4.00 | 12.00 | 15.19 | 1.69 |
| 3/4x15 | 5200 | 300.00 | 0.75 | 1.50 | 3.00 | 0.75 | 5.00 | 15.00 | 18.19 | 1.69 |
| 7/8x5 | 7200 | 275.00 | 0.88 | 1.75 | 3.50 | 0.88 | 2.50 | 5.00 | 8.75 | 2.00 |
| 7/8x8 | 7200 | 325.00 | 0.88 | 1.75 | 3.50 | 0.88 | 4.00 | 8.00 | 11.75 | 2.00 |
| 7/8x12 | 7200 | 400.00 | 0.88 | 1.75 | 3.50 | 0.88 | 4.00 | 12.00 | 15.75 | 2.00 |
| 1X6 | 10000 | 425.00 | 1.00 | 2.00 | 4.00 | 1.00 | 3.00 | 6.00 | 10.31 | 2.31 |
| 1X9 | 10000 | 452.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 9.00 | 13.31 | 2.31 |
| 1x12 | 10000 | 550.00 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 12.00 | 16.31 | 2.31 |
| 1x18 | 10000 | 650.00 | 1.00 | 2.00 | 4.00 | 1.00 | 7.00 | 18.00 | 22.31 | 2.31 |
| 11/4x8 | 15200 | 750.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 8.00 | 13.28 | 2.88 |
| 11/4x12 | 15200 | 900.00 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 12.00 | 17.38 | 2.88 |
| 11/4x20 | 15200 | 1150.00 | 1.25 | 2.50 | 5.00 | 1.25 | 6.00 | 20.00 | 25.38 | 2.88 |
